Corridor

Dedicated Application Bundle for corridor

Presence detector LRM1011 placement

  • Do not position too close to a door, as sensor might detect motion outside when door open
  • Do not position close to air ventilation , curtains or heating outlet, as air flow can trigger motion sensor

Recommended for optimal energy saving:

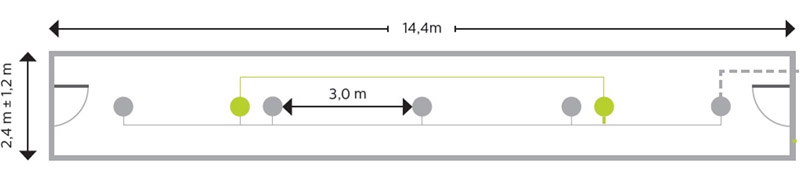

  • Lighting design example has 2 sensors to ensure a full detection coverage.
  • All the luminaires will be switched on when entering the corridor.

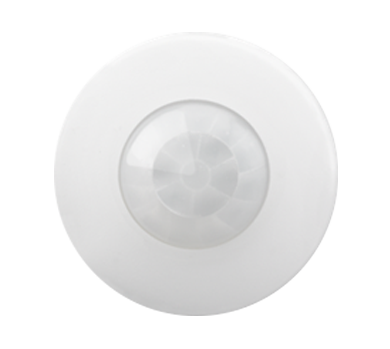

Presence detector LRM1011

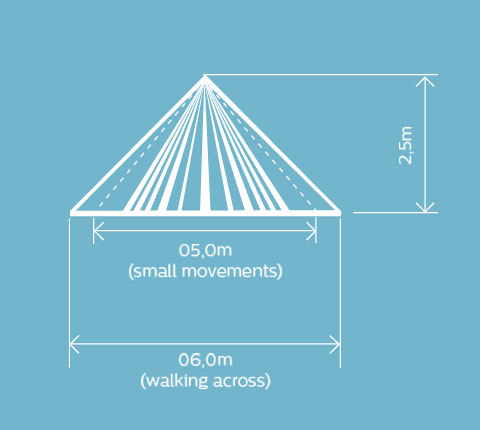

Detecting range at 2 - 5 m height Ø 6 m - 11 m
Recommended mounting height 2 m - 5 m
Switch off delay 10 sec. - 30 min. in 6 steps
Number of luminaires on one control ≤ 15
Cut-out diameter 36 mm
