Industry Low-Bay

Dedicated Application Bundle for industry low bay

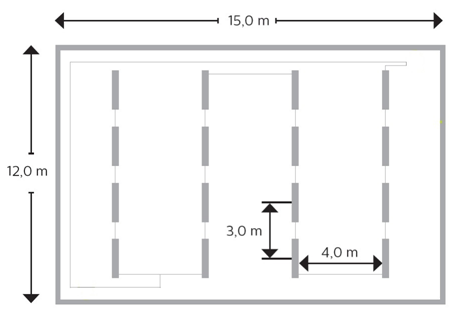

CoreLine Waterproof LED60S luminaire placement

If you want to understand the basics of making lighting plans we recommend the course on “Lighting Calculations”

To meet European lighting standard for industry halls (assumed ceiling height 4 m) :

  • Ensure 3.0 m spacing between center of luminaires
  • Ensure 4 m spacing between lines of luminaires.

For deviating spaces, please consult your nearest Philips lighting sales office.

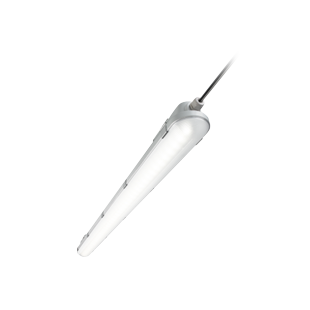

CoreLine Waterproof LED60S
Type WT120C LED60S/840 PSU L1500
Power 57W
Luminous Flux 6000 lm
Color temperature 4000 K
Color Render Index ≥ 80
Lifetime 50,000 hours
Number of luminaires on MCB 16A type B ≤ 24
How to install
