Lighting University

Application Bundles - Training Tool

Small Bakery

Dedicated Application Bundle for Small Bakery

EcoStyle Fresh Food Champagne luminaire placement

Accent lighting with EcoStyle Fresh Food Champagne luminaires

  • In below lighting design luminaires are placed along the shelves and along the vitrine.
  • Distance between the wall and luminaire is (recommended) 90 cm.
  • The position of the projectors on track is flexible, since the projector is movable along the track.
  • More projectors can be added on the track when a stronger highlight is desired.

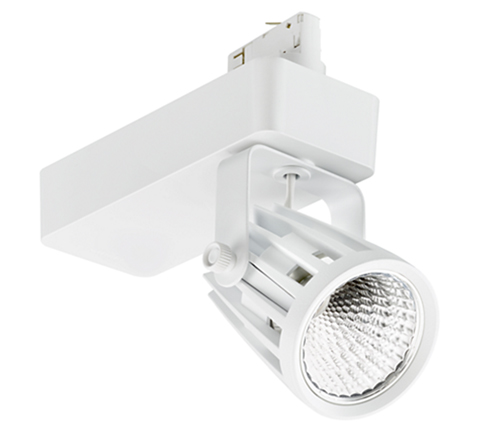

EcoStyle Fresh
Food Champagne
Type ST44OT LED27S / CH PSU WB II WH
Power 50W
Luminous Flux 2600lm
Color temperature Fresh Food Champagne
Color Render Index ≥90
Lifetime 70,000 hours
Number of luminaires on MCB 16A type B ≤ 35
Cut-out diameter not applicable

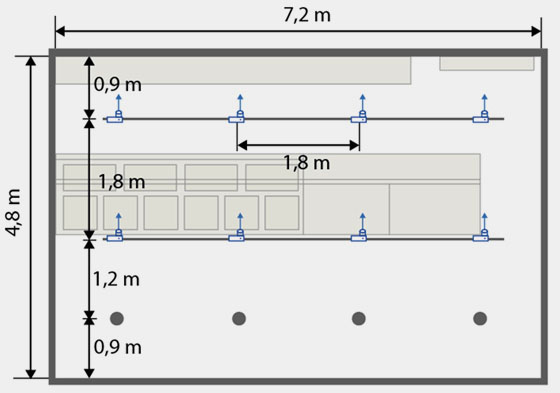

Installation diagram
