Small Butchery

Dedicated Application Bundle for Small Butchery

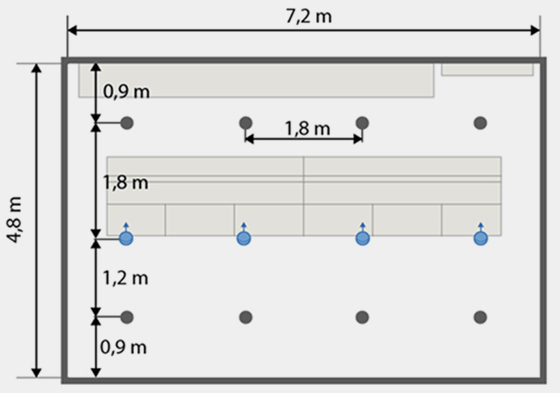

CoreLine downlight luminaire placement

General lighting with CoreLine downlight

  • Downlights are placed to create a general illuminance above the workbench and in the remaining customer area.
  • Light sources in the store should also provide illuminance on the walls. To that end, the offset from the walls should not exceed 1.20 m and ideally be 90 cm.
  • Brightly lit walls would not only clearly communicate that the store is open but also make the store appear cleaner and more spacious.

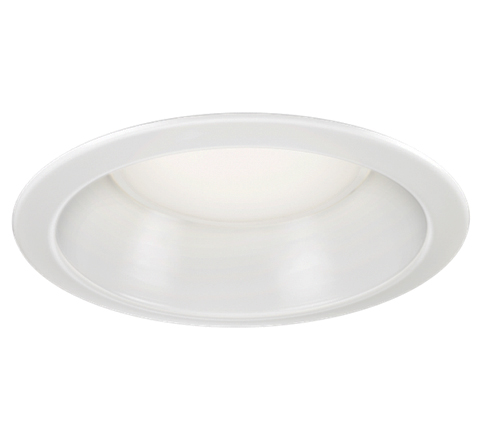

CoreLine Downlight LED20S
Type DN130B LED20S/ 830 PSU PI6 WH
Power 22 W
Luminous Flux 2100 lm
Color temperature 3000k
Color Render Index ≥80
Lifetime 50,000 hours
Number of luminaires on MCB 16A type B ≤15
Cut-out diameter 200-205 mm
How to install
