Urban Inspiration > Urban street & road lighting >
Alliance LED +West
8m
7m
6m
5m
4m
3m
2m
1m
680
170
810
220

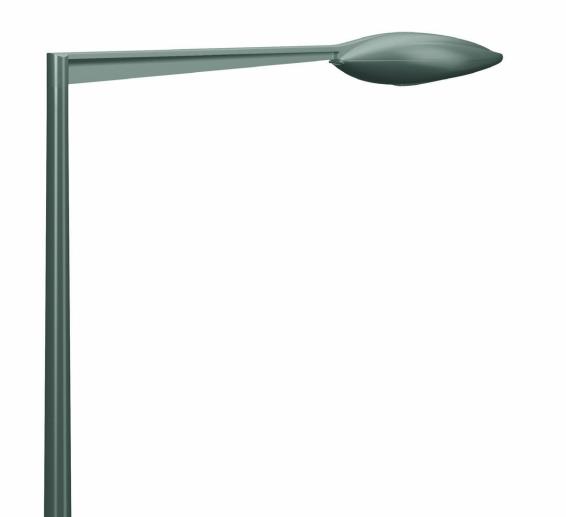

Alliance 1 LED
+ D mounting system
Alliance 2
+ D mounting system

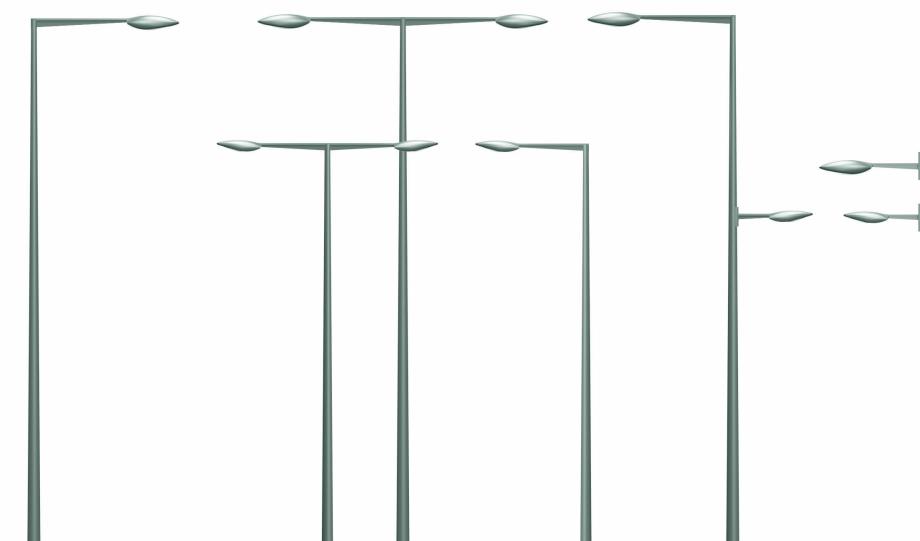

Inspiration for urban complete sets
Complete sets:
1-3.
Alliance 2 +West S1900 bracket + Aloa/Accante pole
2-4.
Alliance 1
LED +West S1450 bracket + Aloa/Accante pole
5.
Alliance 2 +West S1900
bracket + Aloa/Accante pole + Alliance 1 LED +West S920 rear bracket
6.
Alliance 2 +West S920 wall bracket
7.
Alliance 2 +West S1225 wall bracket
See page 281 for technical specifications Alliance LED
See page 344 for technical specifications West bracket
See page 405 for technical specifications standard poles
•
Dedicated extruded cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 89 mm)
or Aloa conical pole in aluminium (top Ø 90 mm)
•
Sets with one or two luminaires, single or double, rear bracket and
wall mounted in different lengths and several pole heights
•
Only Alliance 1 is available in LED version
Alliance LED
+ West
