Urban Inspiration > Urban street & road lighting >
Alliance LED + Step
680
170
810
220
Alliance 1 LED
+ LAS mounting system
Alliance 2
+ LAS mounting system

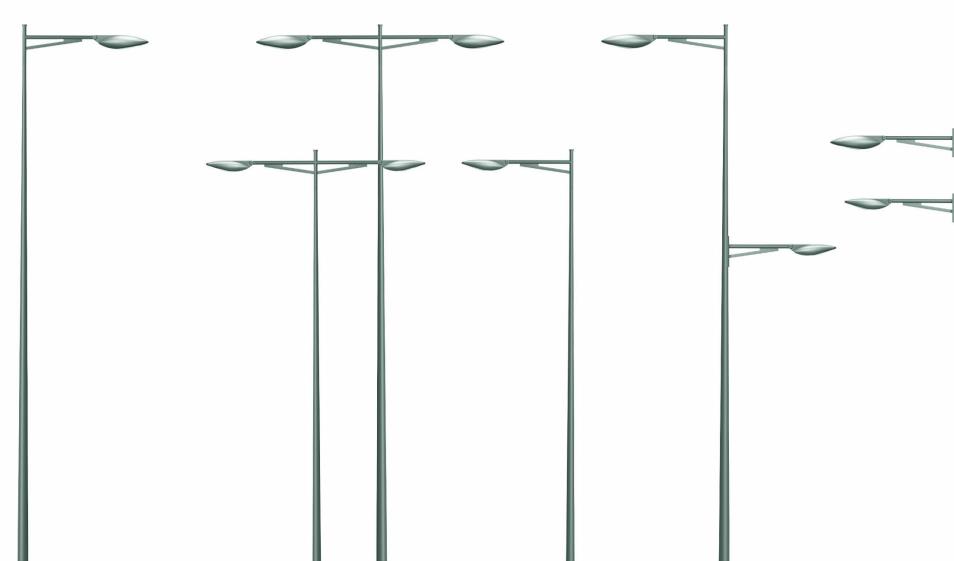

Inspiration for urban complete sets
Complete sets:
1-3.
Alliance 2 + Step L1080 bracket + Aloa/Accante pole
2-4.
Alliance 1 LED
+ Step L980 bracket + Aloa/Accante pole
5.
Alliance 2 + Step L1080
bracket + Aloa/Accante pole + Alliance 1 LED + Step L980 rear bracket
6.
Alliance 1 LED + Step L980 wall bracket
7.
Alliance 2 + Step L1080
wall bracket
•
Standard extruded aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 89 mm)
or Aloa conical pole in aluminium (top Ø 90 mm)
•
Sets with one or two luminaires, single or double, rear bracket and wall
mounted in different lengths and several pole heights
•
Only Alliance 1 is available in LED version
Alliance LED
+
Step
1
2
3
4
5
6
7
See page 281 for technical specifications Alliance LED
See page 363 for technical specifications Step bracket
See page 405 for technical specifications standard poles
Measurements in mm
8m
7m
6m
5m
4m
3m
2m
1m
