Urban Inspiration > Urban street & road lighting >
Alliance LED + Spline
8m
7m
6m
5m
4m
3m
2m
1m
680
170
810
220
Alliance 1 LED
+ LAS mounting system
Alliance 2
+ LAS mounting system
Inspiration for urban complete sets

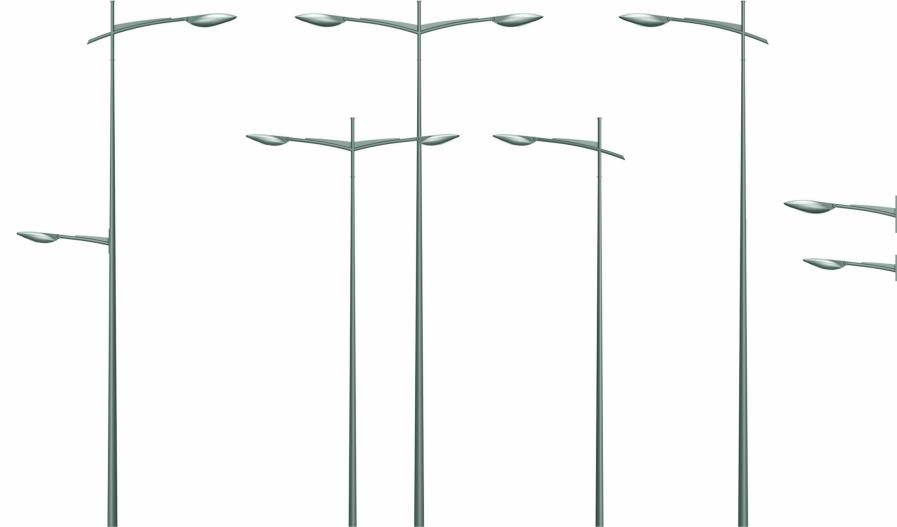

Complete sets:
1.
Alliance 2 + Spline L1205 brackets + Aloa/Accante pole + Alliance 1 LED +
Spline L1045 rear bracket
2-4.
Alliance 1 LED + Spline L1045 bracket +
Aloa/Accante pole
3-5.
Alliance 2 + Spline L1205 bracket + Aloa/Accante pole
6.
Alliance 1 LED + Spline L1045 wall bracket
7.
Alliance 2 + Spline L1205 wall
bracket
•
Standard extruded aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 89 mm)
or Aloa conical pole in aluminium (top Ø 90 mm)
•
Sets with one or two luminaires, single or double, rear bracket and wall
mounted in different lengths and several pole heights
•
Only Alliance 1 is available in LED version
Alliance LED
+
Spline
Measurements in mm
See page 281 for technical specifications Alliance LED
See page 362 for technical specifications Spline bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
7
