Urban Inspiration > Urban street & road lighting >
Alliance LED + Patio
680
170
810
220
Alliance 1 LED
+ D mounting system
Alliance 2
+ D mounting system
Inspiration for urban complete sets

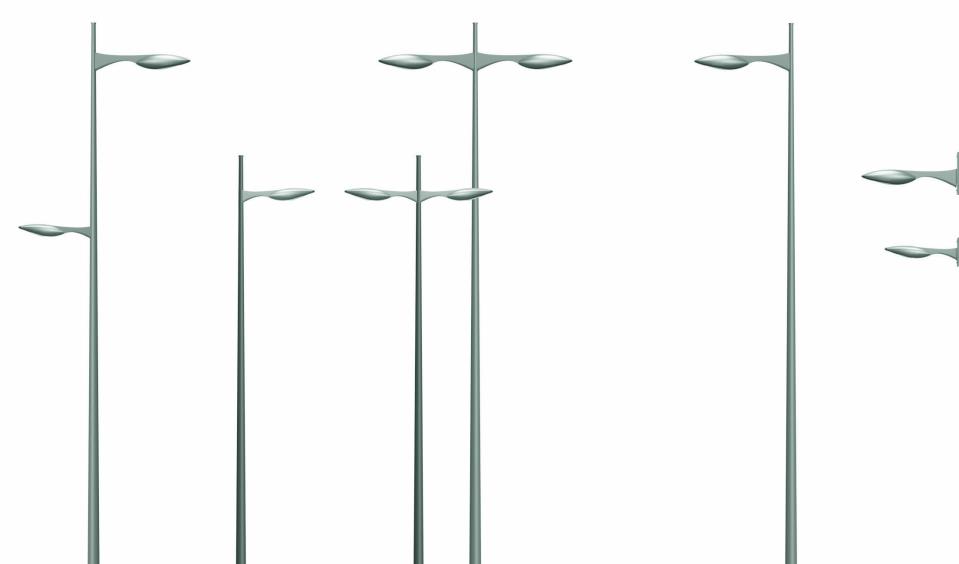

Complete sets:
1.
Alliance 2 + Patio S1100 bracket + Accante pole + Alliance 1 LED + Patio
S800 rear bracket
2-3.
Alliance 1 LED + Patio S800 bracket + Accante pole
4-5.
Alliance 2 + Patio S1100 bracket + Accante pole
6.
Alliance 1 LED +
Patio S800 wall bracket
7.
Alliance 2 + Patio S1100 wall bracket
•
Dedicated cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 76 mm)
•
Sets with one or two luminaires, single or double, rear bracket and wall
mounted in different lengths and several pole heights
•
Only Alliance 1 is available in LED version
Alliance LED
+
Patio
Measurements in mm
See page 281 for technical specifications Alliance LED
See page 342 for technical specifications Patio bracket
See page 405 for technical specifications standard poles
8m
7m
6m
5m
4m
3m
2m
1m
6
7
1
2
3
4
5
