Urban Inspiration > Urban street & road lighting >

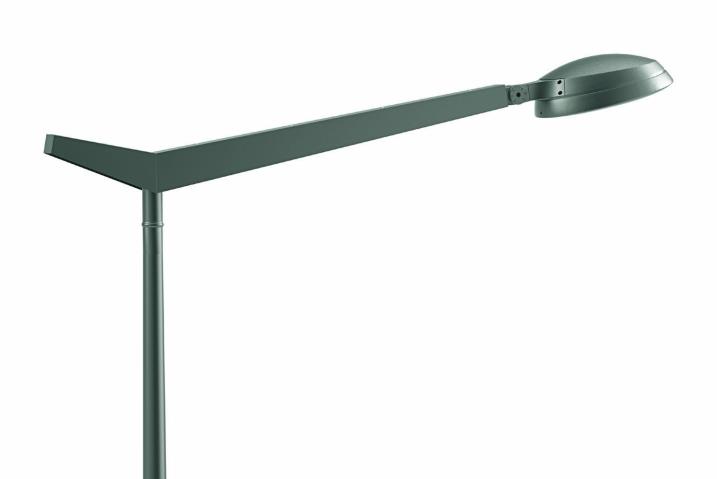

CitySoul LED + Jump
790
215
480
MBA mounting system
Inspiration for urban complete sets
Measurements in mm

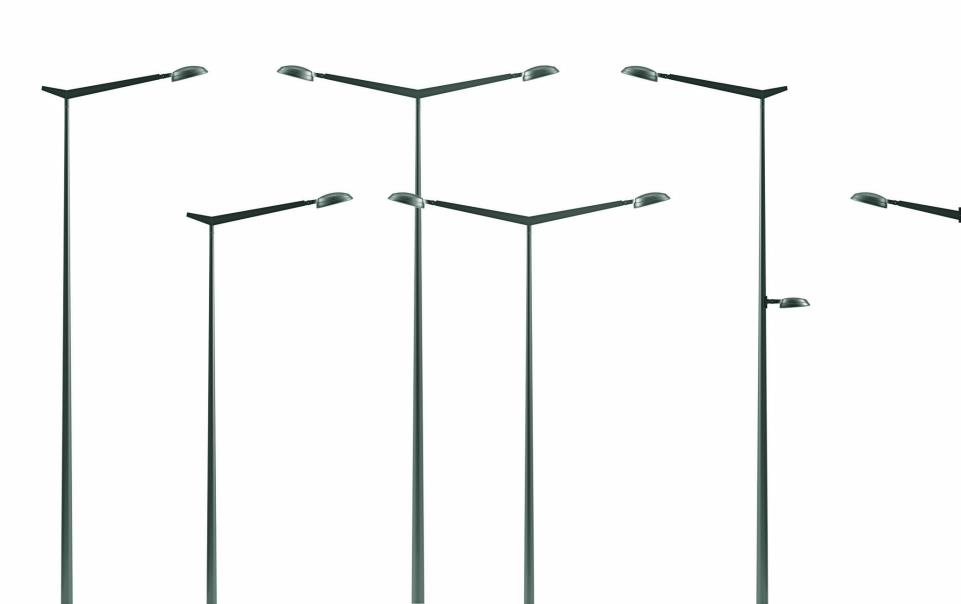

Complete sets:
1-2-3-4.
CitySoul LED + Jump S1500 bracket + Accante pole
5.
CitySoul LED + Jump S1500 bracket + Accante pole + Mini CitySoul
LED + Sweep shor t bracket
6.
CitySoul LED + Jump S1000 wall bracket
•
Dedicated steel bracket
•
Compatible with Accante conical pole in steel top Ø 76 mm
•
Sets with one or two luminaires, single or double, rear bracket and wall
mounted in different lengths and several pole heights
CitySoul LED
+ Jump
See page 283 for technical specifications CitySoul LED
See page 340 for technical specifications Jump bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
9m
8m
7m
6m
5m
4m
3m
2m
1m
