Urban Inspiration > Urban street & road lighting >
Harmony LED + Nuance
8m
7m
6m
5m
4m
3m
2m
1m
Ø 680
Ø 535
165
200
Harmony 1 LED
+ S mounting system
Harmony 2 LED
+ S mounting system
Inspiration for urban complete sets
Measurements in mm
Complete sets:
1.

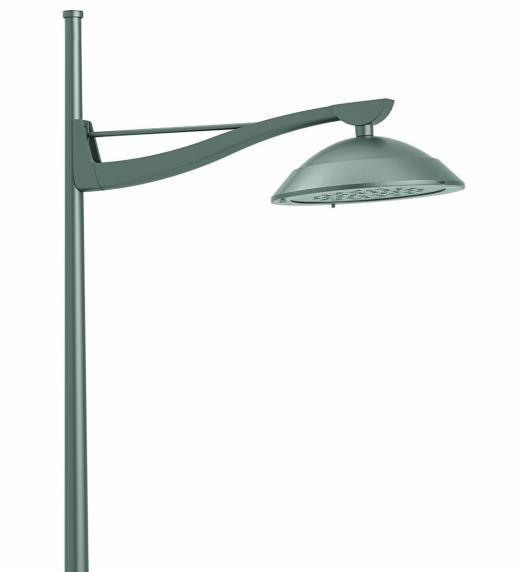

Harmony 2 LED + Nuance bracket S1100 + Accante pole + Harmony
1 LED + Nuance S900 rear bracket
2-5.
Harmony 2 LED + Nuance S1100
bracket + Accante pole
3-4.
Harmony 1 LED + Nuance S900 bracket + Accante pole
6.
Harmony 1 LED + Nuance S900 wall bracket
7.
Harmony 2 LED +
Nuance S1100 wall bracket
•
Standard cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 76 mm)
•
Sets with one or two luminaires, single or double, rear bracket and
wall mounted in different lengths and several pole heights
Harmony LED
+ Nuance
See page 298 for technical specifications Harmony LED
See page 357 for technical specifications Nuance bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
7
