Urban Inspiration > Urban street & road lighting >
Harmony LED + Plaisance
8m
7m
6m
5m
4m
3m
2m
1m
Ø 680
Ø 535
165
200
Harmony 1 LED
+ S mounting system
Harmony 2 LED
+ S mounting system
Ø 680
Ø 535
165
200
Harmony 1 LED
+ S mounting system
Harmony 2 LED
+ S mounting system
Measurements in mm

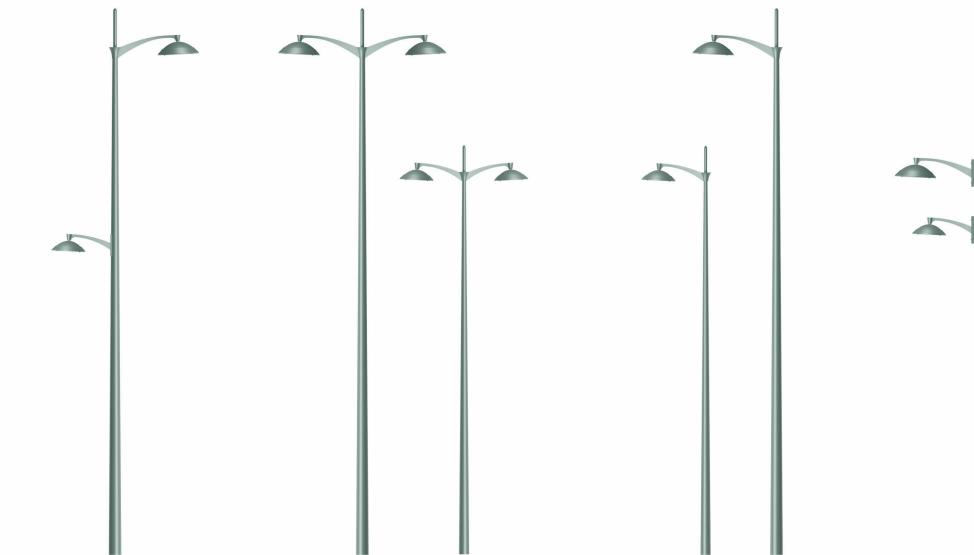

Inspiration for urban complete sets
Complete sets:
1.
Harmony 2 LED + Plaisance S1000 bracket + Aloa/Accante pole +
Harmony 1 LED + Plaisance S750 rear bracket
2-5.
Harmony 2 LED +
Plaisance S1000 bracket + Aloa/Accante pole
3-4.
Harmony 1 LED + Plaisance S750 bracket + Aloa/Accante pole
6.
Harmony 1 LED + Plaisance S750 wall bracket
7.
Harmony 2 LED +
Plaisance S1000 wall bracket
•
Standard cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 89 mm)
or Aloa conical pole in aluminium (top Ø 90 mm)
•
Sets with one or two luminaires, single or double, rear bracket and
wall mounted in different lengths and several pole heights
Harmony LED
+
Plaisance
See page 298 for technical specifications Harmony LED
See page 359 for technical specifications Plaisance bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
7
6
