Urban Inspiration > Urban street & road lighting >

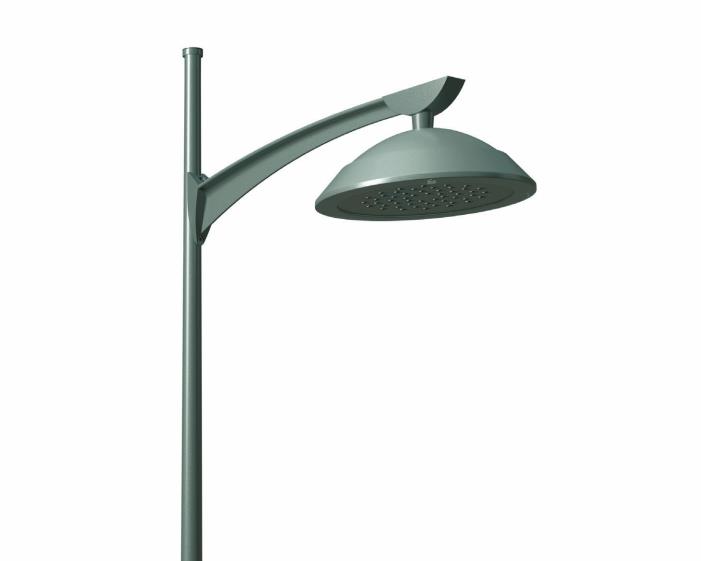

Harmony LED + Azur
8m
7m
6m
5m
4m
3m
2m
1m
Ø 680
Ø 535
165
200
Harmony 1 LED
+ S mounting system
Harmony 2 LED
+ S mounting system
Ø 680
Ø 535
165
200
Harmony 1 LED
+ S mounting system
Harmony 2 LED
+ S mounting system
Inspiration for urban complete sets
Measurements in mm

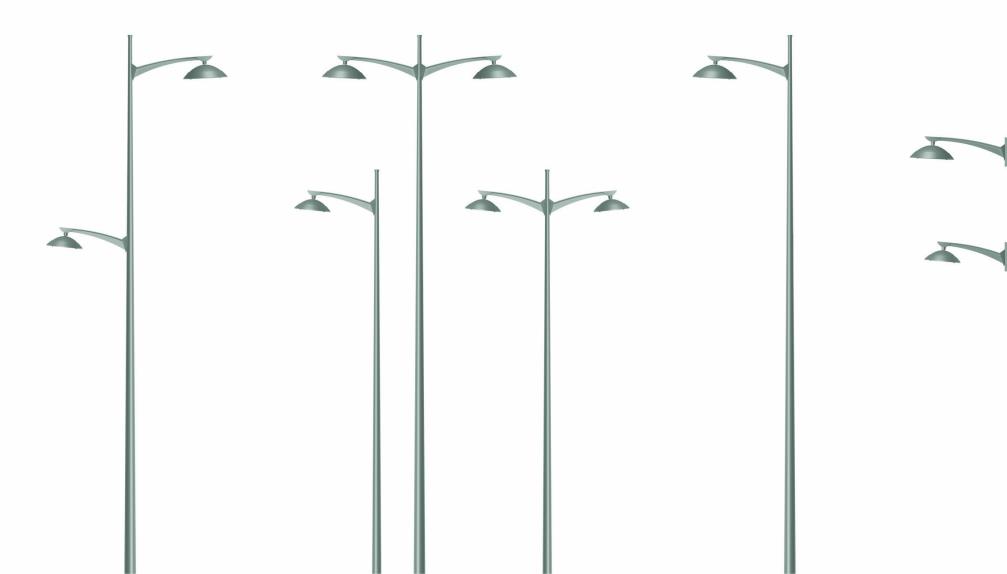

Complete sets:
1.
Harmony 2 LED + Azur S1100 brackets + Accante pole + Harmony
1 LED + Azur S1000 rear bracket
2-4.
Harmony 1 LED + Azur S1000
bracket + Accante pole
3-5.
Harmony 2 LED + Azur S1100 bracket + Accante pole
6.
Harmony 1 LED + Azur S1000 wall bracket
7.
Harmony 2 LED +
Azur S1100 wall bracket
•
Standard cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60, 62 or 76 mm)
•
Sets with one or two luminaires, single, double or rear bracket and
wall mounted in different lengths and several pole heights
Harmony LED
+ Azur
See page 298 for technical specifications Harmony LED
See page 348 for technical specifications Azur bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
7
