Urban Inspiration > Urban street & road lighting >
Harmony LED + Constance
8m
7m
6m
5m
4m
3m
2m
1m
Ø 680
Ø 535
165
200
Harmony 1 LED
+ D mounting system
Harmony 2 LED
+ D mounting system
Inspiration for urban complete sets
Measurements in mm

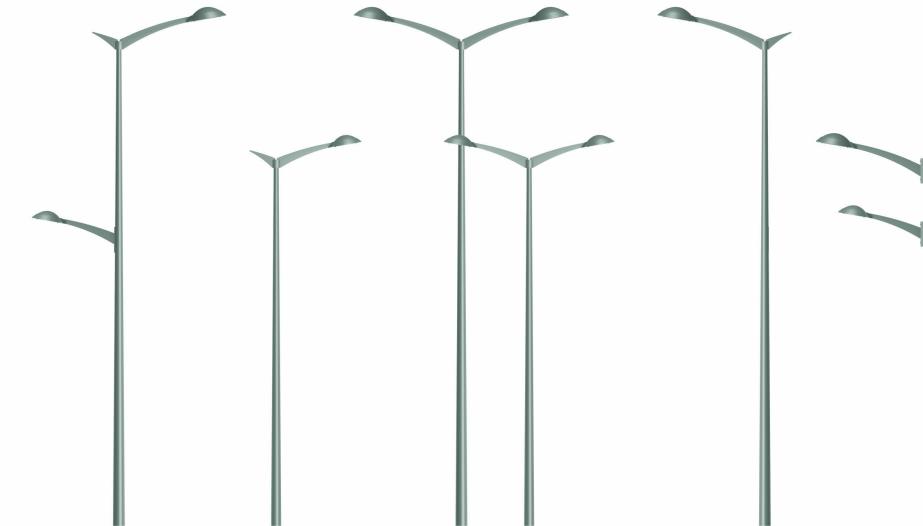

Complete sets:
1.
Harmony 2 LED + Constance S1500 bracket + Aloa/Accante pole +
Harmony 1 LED + Constance S1200 rear bracket
2-4.
Harmony 1 LED +
Constance S1200 bracket + Aloa/Accante pole
3-5.
Harmony 2 LED + Constance S1500 bracket + Aloa/Accante pole
6.
Harmony 1 LED + Constance S1200 wall bracket
7.
Harmony 2 LED +
Constance S1500 wall bracket
•
Dedicated cast aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 89 mm)
or Aloa poles in aluminium (top Ø 90 mm)
•
Sets with one or two luminaires, single or double, rear bracket and
wall mounted in different lengths and several pole heights
Harmony LED
+ Constance
See page 298 for technical specifications Harmony LED
See page 337 for technical specifications Constance bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
7
