Urban Inspiration > Urban street & road lighting >

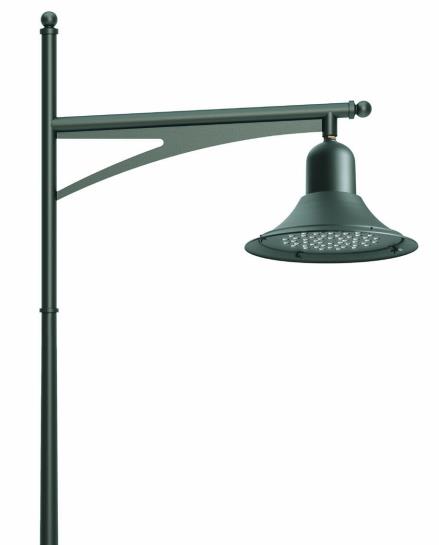

Élysée LED + Kastelle
465
320
Ø 530
Ø 670
Élysée 500
Élysée 650 LED
Inspiration for urban complete sets
Measurements in mm

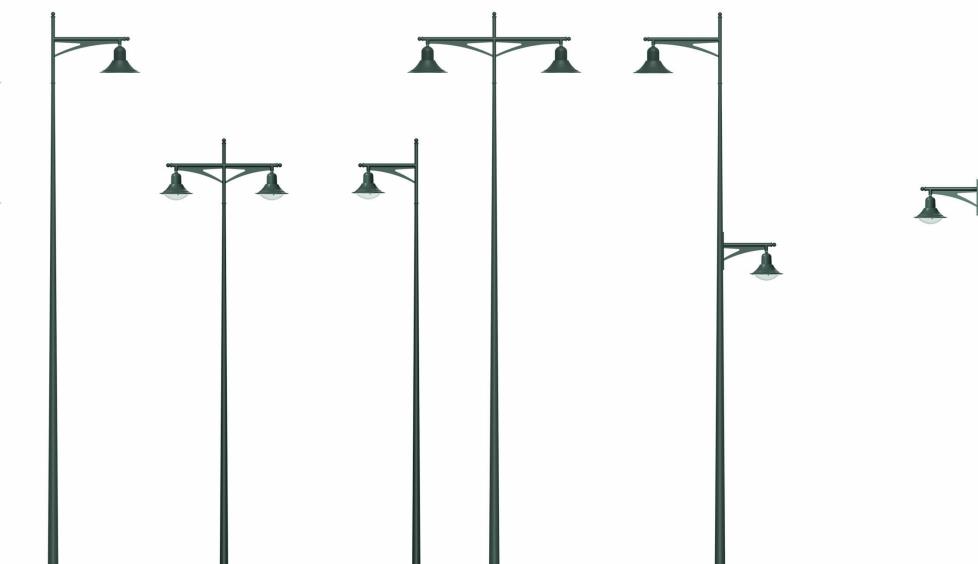

Complete sets:
1-4.
Élysée 650 LED + Kastelle S1000 bracket + Accante pole
2-3.
Élysée 500 + Kastelle S800 bracket + Accante pole
5.
Élysée 650 LED +
Kastelle S1000 bracket + Accante pole + Élysée 500 + Kastelle S800
rear bracket
6.
Élysée 500 + Kastelle S800 wall bracket
Élysée LED
+ Kastelle
8m
7m
6m
5m
4m
3m
2m
1m
•
Standard extruded aluminium bracket
•
Compatible with Accante conical pole in steel (top Ø 60 or 62 mm)
•
Sets with one or two luminaires, single, double or rear bracket and wall
mounted in different lengths and several pole heights
•
Only Élysée 650 is in LED version
See page 297 for technical specifications Élysée LED
See page 353 for technical specifications Kastelle bracket
See page 405 for technical specifications standard poles
1
2
3
4
5
6
