Disq LED
8m
7m
6m
5m
4m
3m
2m
1m
Ø 510
400
Ø 510
Ø 510
151
Ø 510
672
318
410
664
137
259
330
560
Ø 75
1000
Ø 60
Disq LED post-top 0°
Disq LED wall
Disq LED side-entry
Disq 2143
Disq LED post-top 10°
Almere Single bracket

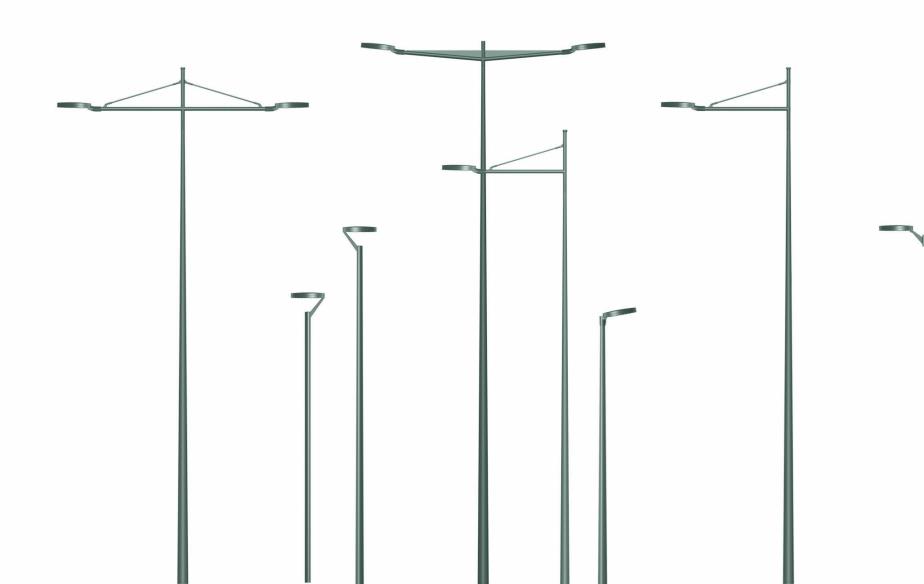

Inspiration for urban complete sets
Measurements in mm
Complete sets:
1-5-7.
Disq LED + Caravelle low L1400 bracket + Aloa/Accante pole
2-3.
Disq LED + Actua pole
4.
Disq LED + Mayotte L1400 bracket +
Accante pole
6.
Disq LED + Aloa/Accante pole
8.
Disq LED wall
See page 291 for technical specifications Disq LED
See page 347 for technical specifications standard brackets
See page 405 for technical specifications standard poles
•
Installation height 4 to 8 m
•
Energy saving LED solution
•
Different mounting versions for a large implementation of the Disq
shape in the cityscape
•
Several standard lumen packages available, offering a wide range
of lighting solutions
•
Several optics available for different street and area geometries
•
Special retrofit kit solution available to update conventional Disq luminaires
Disq LED
