Urban Inspiration > UrbanStyling >
Ocean Road LED + FD/FR
530
365
365
FD mounting
FR mounting
Inspiration for urban complete sets

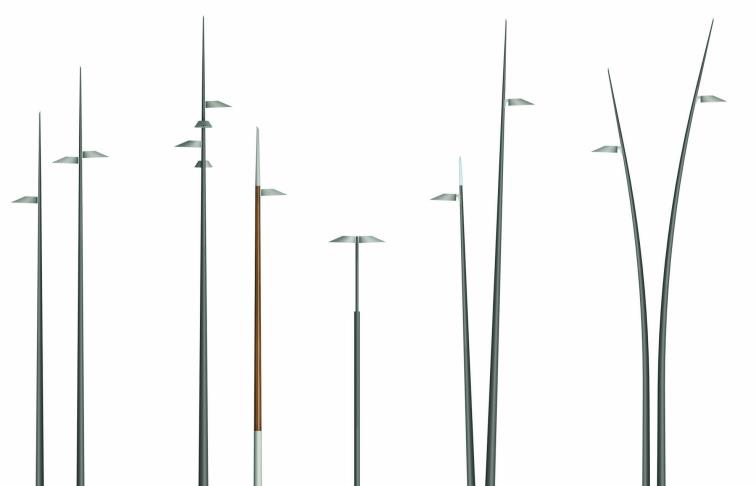

Complete sets:
1-2-3.
Ocean Road LED + Ocean FD bracket + Ocean Road straight
steel pole with top point
4.
Ocean Road LED + Ocean FD bracket +
Ocean Road wooden pole with top point
5.
Ocean Road LED + Ocean
FD bracket + Ocean Road stepped pole
6.
Ocean Road LED + Ocean FR
bracket + Ocean Road 2° inclined steel pole with luminous top point
7.
Ocean Road LED + Ocean FR bracket + Ocean Road 2° inclined steel
pole with top point
8-9.
Ocean Road LED + Ocean FR bracket + Ocean
Road curved steel pole with top point
The graceful and fluid lines of Ocean Road LED will harmonise discretely
with all types of urban environment.This modular luminaire can be
combined with different dedicated sets, such as straight, curved and
inclined poles, brackets and wall mounted luminaires. Designed for heights
of 4 to 9 m, Ocean Road LED combines compactness, finesse and efficiency.
With different optics, it is suited for several lighting applications, main roads
and side streets, pedestrian areas, squares, paths and boulevards
and avenues.
•
Energy efficiency and reduction of
CO
2
emissions
•
Optimised pole spacing
•
Controlled light pollution
•
Tool-less maintenance
•
White light with excellent colour
rendering
Ocean
Road LED + FD/FR
Measurements in mm
See page 317 for technical specifications Ocean Road LED
See page 396 for technical specifications Ocean Road poles with
FD/FR brackets
9m
8m
7m
6m
5m
4m
3m
2m
1m
1
2
3
5
6
7
8
9
4
