Small Butchery

Dedicated Application Bundle for Small Butchery

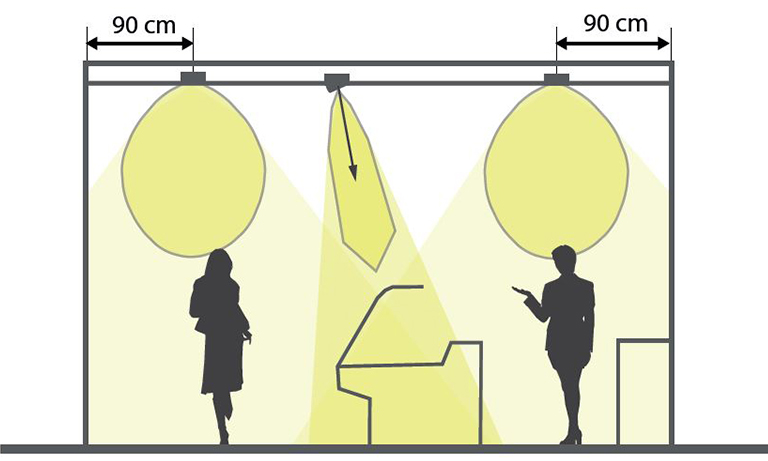

GreenSpace Accent Fresh Food Meat luminaire placement

Accent lighting positioning in butchery

  • For the best accent affect, the direction of the lighting should be same as the viewing direction, therefore the accent lighting should be ideally located slightly in front of the display counter.
  • General illuminance can be relatively lower than the illuminance on the display, otherwise the contrast will not be noticeable.
  • Luminaires should be placed so that they do not have to be tilted more than 20o. If they are placed further away, this angle will be greater, which will increase the risk of direct glare for the staff and customers casting their own shadow on the display counter.
