Lighting University

Application Bundles - Training Tool

Open Plan Office

Dedicated Application Bundle for office

CoreLine Recessed luminaire placement

If you want to understand the basics of making lighting plans we recommend the course on “Lighting Calculations”

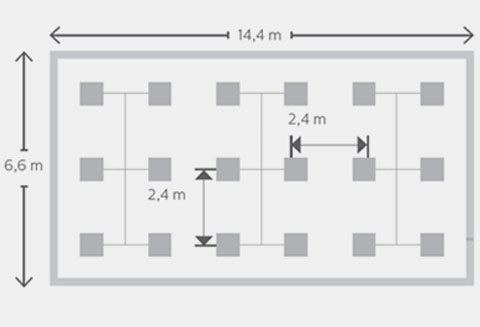

To meet European lighting standard for office (assumed ceiling height 2.8 m):

  • Ensure 2.4 m spacing between center of luminaires
  • Ensure maximum 1.1 m spacing between center of luminaire and wall

For deviating spaces, please consult your nearest Philips lighting sales office.

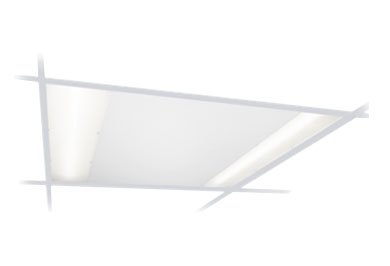

CoreLine Recessed LED34S VAR-PC
Type RC120B LED34S/830 PSD W60L60 VAR-PC
RC120B LED34S/840 PSD W60L60 VAR-PC
Power 35,5 W
Luminous Flux 3400 lm
Color temperature 3000 K, 4000 K
Color Render Index ≥ 80
Lifetime 50,000 hours
Number of luminaires on MCB 16A type B ≤ 24
How to install
Get Certified! Next Previous
