Car Park

Dedicated Application Bundle for car park

Movement detector LRM1040 placement

  • When placing sensor consider entrances and exits to avoid going into a dark area.
  • Do not position them close to air ventilation or heating outlets – air flow can trigger the sensor

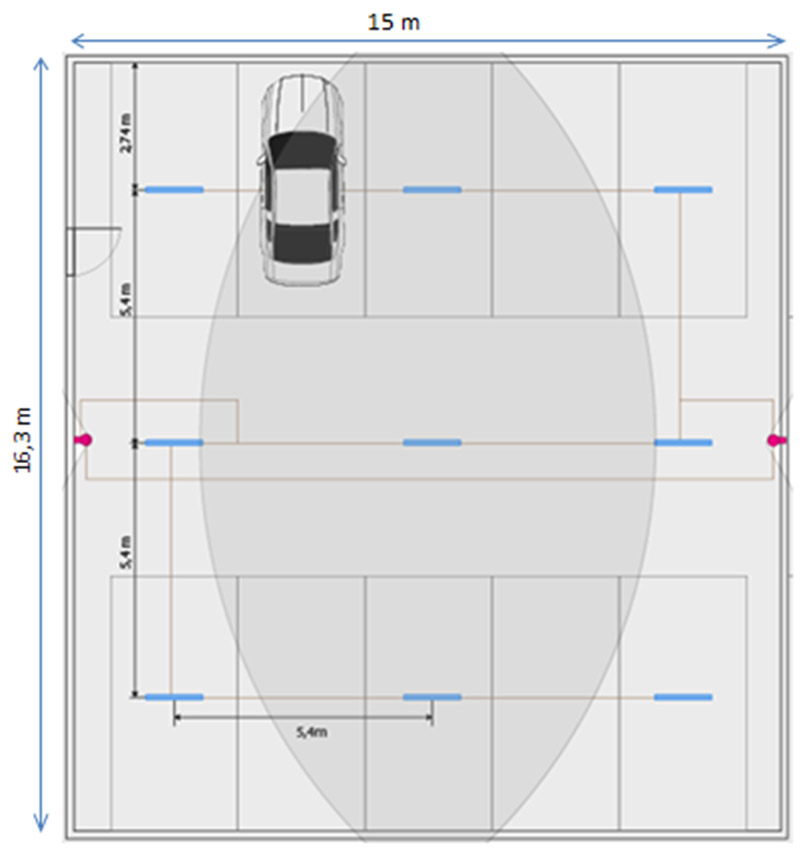

Example of the 1 zone car park:

  • 2 sensors placed on the wall to ensure a full sensor detection coverage.
  • 1 zone means that all luminaires will be switched on/off

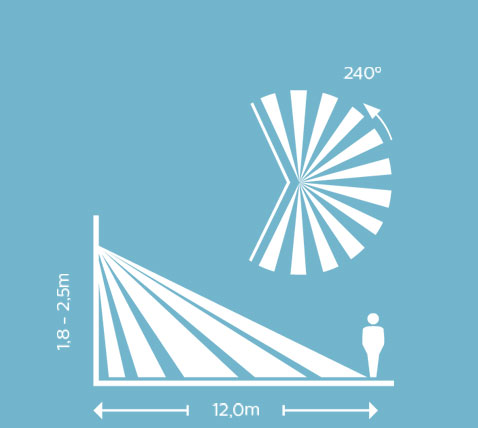

Detection coverage diagram

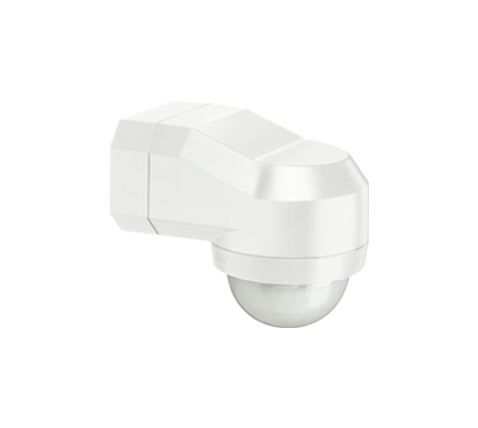

Movement detector LRM1040
Detecting range at 2 - 5 m height 12 m
Recommended mounting height 1,8 - 2,5 m (wall mounting)
2,5 - 4,0 m (ceiling mounting)
Switch off delay 5 sec. - 12 min.
Number of luminaires on one control ≤ 24
