Small Bakery

Dedicated Application Bundle for Small Bakery

CoreLine Downlight LED20S

General lighting:

  • General light sources in the store should also provide illuminance on the walls. To that end, the offset from the walls should not exceed 1.20 m and ideally be 90 cm.
  • Brightly lit walls would not only clearly communicate that the store is open but also make the store appear cleaner and more spacious.
  • In the lighting plan below, downlights are placed to create a general illuminance in the remaining customer area.

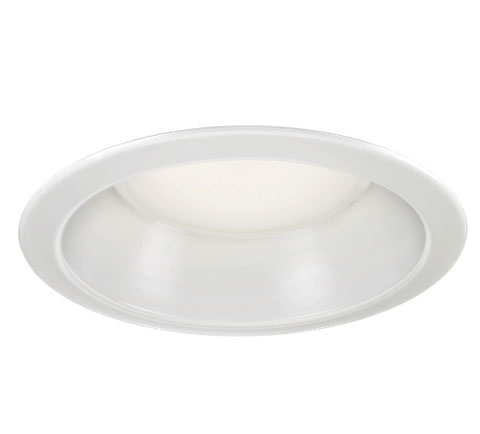

CoreLine Downlight
LED20S
Type DN130B LED20S / 830 PSU PI6 WH
Power 22W
Luminous Flux 2100lm
Color temperature 3000k
Color Render Index ≥80
Lifetime 50,000 hours
Number of luminaires on MCB 16A type B ≤ 15
Cut-out diameter 200-205 mm
How to Install
