Lighting University

Application Bundles - Training Tool

Small Storages

Dedicated Application Bundle for small storages

CoreLine Batten LED38S luminaire placement

If you want to understand the basics of making lighting plans we recommend the course on “Lighting Calculations”

To meet European lighting standard for industry halls (assumed ceiling height 3 m):

  • Ensure 3.0 m spacing between center of luminaires
  • Ensure 2.6 m between lines of luminaires

For deviating spaces, please consult your nearest Philips lighting sales office

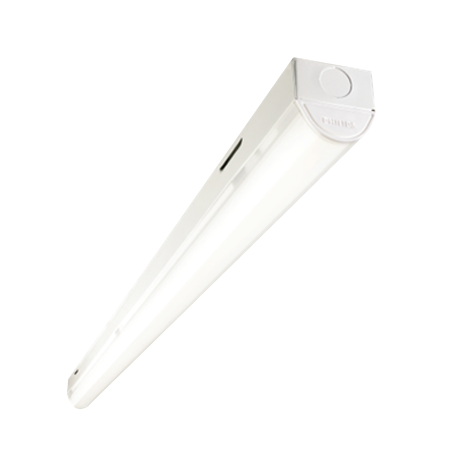

CoreLine Batten LED38S
Type BN120C LED38S/830 PSU L1200
BN120C LED38S/840 PSU L1200
Power 40 W
Luminous Flux 3800 lm
Color temperature 3000 K, 4000 K
Color Render Index ≥ 80
Lifetime 50,000 hours
Number of luminaires on MCB 16A type B ≤ 24
How to install
Get Certified! Next Previous
