Small Storages

Dedicated Application Bundle for small storages

Movement detector LRM1032 placement

  • Take into account high furniture as these may block detection zone
  • Do not position close to air ventilation, curtains or heating outlet, as air flow can trigger motion sensor
  • Do not position too close to a door, as sensor might detect motion outside when door open
  • In positioning sensor, keep in mind it detects motions best when right in front of it (90 degrees)
  • When placing the sensor consider the entrances to avoid going into a dark area (detection range!)

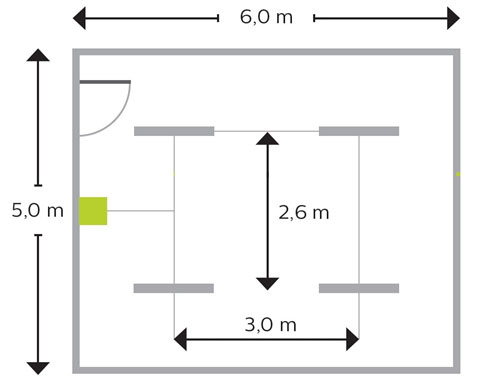

In this lighting design 1 sensor is placed on the wall. When opening the door the sensor detects the movement.

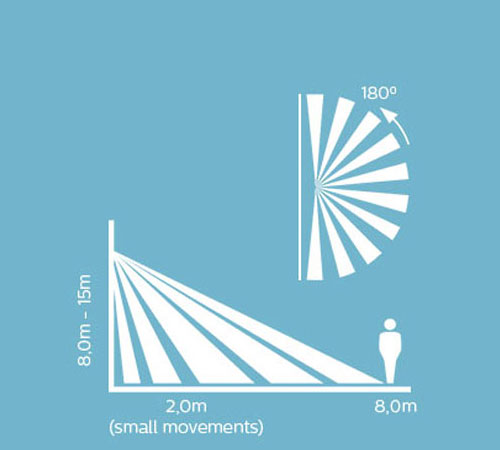

Detection coverage diagram

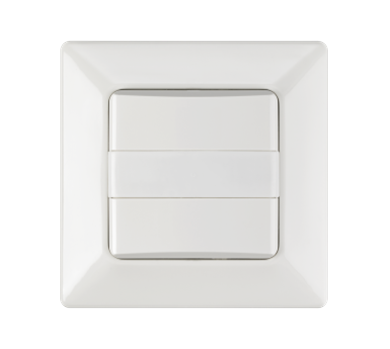

Presence detector LRM1032
Detecting range at 0,8 - 1,5 m height 8 m
Recommended mounting height 1,2 m
Switch off delay 10 sec. - 30 min. (10 settings)
Number of luminaires on one control ≤ 10
Ordering (EOC) code 44225800 LRM1032 3w
44227200 LRM1033 2w (retrofit)
