Lighting University

Application Bundles - Training Tool

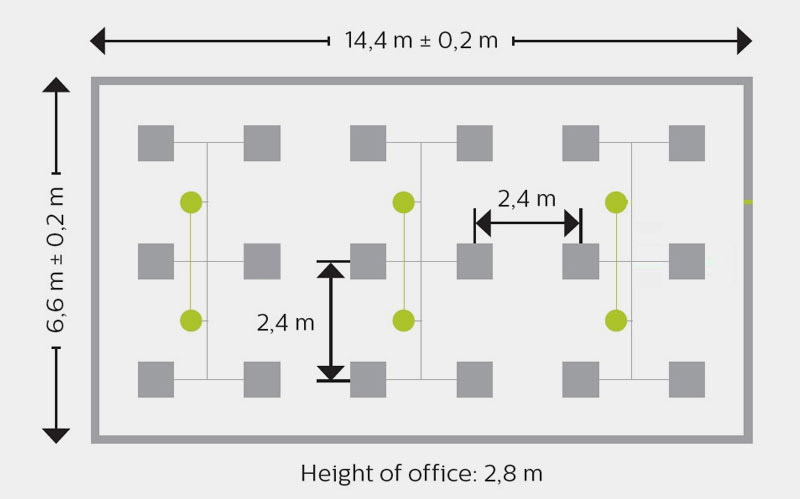

Open Plan Office

Check the current lighting

1 - Measure (in accordance with the standard EN 12464-1; 2011)

Measure illuminance:

    1.
  1. On desk (horizontal)
    • Illuminance Em ≥ 500 Lux
    2. 2.
  2. On one or two other desks (horizontal)
    • To check the light uniformity in the space.
    • Uo ≥ 0.6
    3. 3.
  3. On wall, at desk height (vertical)
    • Philips recommended ≥ 75 lux
    4. 4.
  4. In between desks, on floor level
    • Philips recommended ≥ 300 lux
1
2
3
4
